2 MVA Transformer – Rajasthan power

2 MVA distribution transformer manufacturers

An Authorized 2 mva dry type transformer, 2 mva cast resin transformer suppliers in africa, view 2000 kva transformer price in india

Contact Now

A 2000 kva transformer amps is a electrical device which can transfer electrical energy from one electrical circuit to one or more than one circuits. This 2 mva cast resin transformer is an electrical device that is known to be passive. A varying current in any one coil of the 2000 kva transformer could produce a varying magnetic flux.

Looking For 2 mva pad mounted transformer, 2000 kva dry type transformer Exporter in india, view 2000 kva transformer price.

This magnetic flux, in the 2 mva transformer can in turn, induce a varying electromotive force across any other coils which are wound around the same core. Click here to check the rate of cost of 2 mva transformer. At Rajasthan Powergen Transformer P. Ltd., we offer one of the most competitive 2 mva transformer price in India. Click here to find out the 2000 kva transformer price. We are one of the leading 2 mva transformer manufacturers in India.

Electrical energy can be transferred between possibly many coils of the 2 mva transformer specification, without a metallic connection between these two circuits. Since all energized connection points in a pad mounted 2 mva transformer full load current have been securely enclosed in a grounded metal housing, a 2000 kva pad mount transformer can be installed in places which do not have room for a fenced enclosure.

Typically, the 2 mva pad mounted transformer is used with underground electric power distribution lines at service drops. Here the pad mount 2000 kva transformer is used to step down the primary voltage on the line to the secondary lower voltage which is then supplied to utility customers.

A single 2 mva transformer oil quantity could be used to serve one large building, or many homes. Click here to find out the 2 mva transformer weight as well as the 2 mva transformer dimensions and the 2 mva transformer current rating. A 2000 kva dry type transformer is a type of transformer which generally never uses any insulating liquid in cases where the winding or core of the 2 mva dry type transformer have been immersed in liquid. Rather, the windings as well as the core of the 2 mva dry type transformer dimensions are to be kept within a sealed tank that is pressurized with air.

what is 2 mva transformer ?

Volt amperes are a unit utilized to describe the electrical load in engineering. Volt amperes can be abbreviated VA. You can also utilize metric prefixes such as “kilo-” and “mega-.” It takes 1,000 volt amperes to rise to one kilo-volt ampere and 1,000,000 volt-amperes to equal one mega-volt ampere. Therefore, it takes 1,000 kilo-volt amperes to get one mega-volt ampere. Divide the number of kVA by 1,000 to convert to MVA. For example, in case you’ve got 438 kVA, isolate 438 by 1,000 to get 0.438 MVA

We are one of the leading transformer manufacturer company catering to different segments that require continuous power supply.We realize the challenges faced by companies that depend on continuous supply of power for their operations. In case of transformer breakdown, we offer our transformers for beneficiary for brief power generation with step-up capabilities. Through our group of talented and proficient professionals, we guarantee fast arrangement and productive execution with no respectful alterations required.

2 MVA = 2000kVA

Why is a transformer rated in an MVA?

The copper losses within the transformer are variable losses and are depends upon the current rating of the transformer and the iron losses are depending upon the voltage. Hence, the full losses in a transformer depends on the voltage and current appraisals of the transformer. In other words the full losses depends on the volt-ampere (VA) item only and not on the phase angle between voltage and current i.e. it is autonomous of load power factor. That’s why rating of transformer is continuously communicated in kVA or MVA.

2 mva transformer specification

Basic Transformer Concept	oil-immersed, hermetic
Tank Design	Corrugated tank design, flexible cooling fins
Number of Phases	3-phase
Rated Power	2000 kVA
Method of Cooling	ONAN
Voltage Ratio	10 000 / 400 V
Voltage Regulation	off-circuit tap changer
Tapping Range	+-2×2,5%
Various Voltage Ratio:	10500/400 V 10250/400 V 10000/400 V 9750/400 V 9500/400 V
Frequency	50 Hz
Temperature Rise	60/65 K
Connection	Dyn5
Impedance	6,06%
Total Weight	4340 kg
2 mva transformer manufacturers export to	Uganda, Bangladesh, Nigeria, India, Nepal, Rwanda, Malaysia Tanzania, Kenya, Malawi, Africa
Other Ratings	10, 16, 25, 50, 63, 100, 160, 200, 315, 500, 630, 750 kVA
all above transformer are	11kV , 22kV, 33kV line
Efficiency	3, 4, 5 Star or Level II, Level III

2000 kva transformer price

For Final 2 mva transformer price in india Please Mail Us on info@rajasthanpower.in

2 mva transformer manufacturers

Find Great Deals On 2 mva 11kv transformer, 2000 kva pad mount transformer, Check 2 mva transformer price

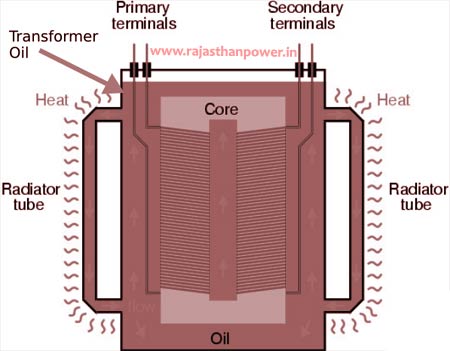

2 mva transformer oil quantity

Transformer oil (moreover known as insulating oil) may be a uncommon type of oil which has fabulous electrical protection properties and is steady at high temperatures. Transformer oil is utilized in oil-filled electrical power transformers to insulate, stop arcing and corona release, and to disseminate the heat of the transformer (i.e. act as a coolant).

Main Dimensions of the 300-2500 kVA Standard Transformers with Oil Expansion Tanks
Power	Max Voltage	Weight of Oil	Active Section Weight	Total Weight	Leng. A	Wid. B	Heig. C	D	F	ØG	L	M	N	S	T
kVA	kV	kg	kg	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
2000 KVA	6,3-11	1025	2730	4785	2265	1250	2255	1525	1000	200	70	310	400	372	200
	15	1080	2765	4895	2270	1260	2160	1430				385
	33	1185	2745	4985	2270	1275	2465	1635				485

2000 kva transformer amps

Formulas Used In Calculation:

1-Phase KVA = Volts x Amps / 1000
1-Phase Amps = KVA / Volts x 1000
3-Phase KVA = Volts x Amps x 1.732 / 1000
3-Phase Amps = KVA / Volts / 1.732 x 1000

Generator KVA Rating to Amperage Conversion Chart 80% POWER FACTOR
kV•A	kW	208V	220V	240V	380V	440V	480V	600V	2400V	3300V	4160V
6.3 KVA	5	17.5	16.5	15.2	9.6	8.3	7.6	6.1
9.4 KVA	7.5	26.1	24.7	22.6	14.3	12.3	11.3	9.1
12.5 KVA	10	34.7	33	30.1	19.2	16.6	15.1	12
18.7 KVA	15	52	49.5	45	28.8	24.9	22.5	18
25 KVA	20	69.5	66	60.2	38.4	33.2	30.1	24	6	4.4	3.5
31.3 KVA	25	87	82.5	75.5	48	41.5	37.8	30	7.5	5.5	4.4
37.5 KVA	30	104	99	90.3	57.6	49.8	45.2	36	9.1	6.6	5.2
50 KVA	40	139	132	120	77	66.5	60	48	12.1	8.8	7
62.5 KVA	50	173	165	152	96	83	76	61	15.1	10.9	8.7
75 KVA	60	208	198	181	115	99.5	91	72	18.1	13.1	10.5
93.8 KVA	75	261	247	226	143	123	113	90	22.6	16.4	13
100 KVA	80	278	264	240	154	133	120	96	24.1	17.6	13.9
125 KVA	100	347	330	301	192	166	150	120	30	21.8	17.5
156 KVA	125	433	413	375	240	208	188	150	38	27.3	22
187 KVA	150	520	495	450	288	249	225	180	45	33	26
219 KVA	175	608	577	527	335	289	264	211	53	38	31
250 KVA	200	694	660	601	384	332	301	241	60	44	35
312 KVA	250	866	825	751	480	415	376	300	75	55	43
375 KVA	300	1040	990	903	576	498	451	361	90	66	52
438 KVA	350	1220	1155	1053	672	581	527	422	105	77	61
500 KVA	400	1390	1320	1203	770	665	602	481	120	88	69
625 KVA	500	1735	1650	1504	960	830	752	602	150	109	87
750 KVA	600	2080	1980	1803	1150	996	902	721	180	131	104
875 KVA	700	2430	2310	2104	1344	1274	1052	842	210	153	121
1000 KVA	800	2780	2640	2405	1540	1330	1203	962	241	176	139
1125 KVA	900	3120	2970	2709	1730	1495	1354	1082	271	197	156
1250 KVA	1000	3470	3300	3009	1920	1660	1504	1202	301	218	174
1563 KVA	1250	4350	4130	3740	2400	2080	1885	1503	376	273	218
1875 KVA	1500	5205	4950	4520	2880	2490	2260	1805	452	327	261
2188 KVA	1750			5280	3350	2890	2640	2106	528	380	304
2500 KVA	2000			6020	3840	3320	3015	2405	602	436	348
2812 KVA	2250			6780	4320	3735	3400	2710	678	491	392
3125 KVA	2500			7520	4800	4160	3740	3005	752	546	435
3750 KVA	3000			9040	5760	4980	4525	3610	904	654	522
4375 KVA	3500			10550	6700	5780	5285	4220	1055	760	610
5000 KVA	4000			12040	7680	6640	6035	4810	1204	872	695

2 mva transformer current rating

kVA stands for Kilovolt-Ampere and is the rating regularly utilized to rate a transformer. The size of a transformer is decided by the kVA of the load. In numerous circumstances the power required by the load is proportionate to the rating of the transformer communicated in either VA or kVA. For case a 1KW (1000 Watts) load would require a 1kVA transformer @ unity power factor.

KVA calculation
For three phase KVA= (V*I*1.732)/1000
For single phase KVA= (V*I)/1000

MVA calculation-
For three phase MVA= (V*I*1.732)/100,000
For single phase MVA= (V*I)/1000,000

Get All Type Test Report Here

types of industrial transformer available

2 mva transformer dimensions

Main Technical Parameters for 11/10.5/10/6.3/6KV level ,S11 series distribution transformer
Rated Power (kva)	High Voltage (kv)	H.V.Tap range	Low Voltage (kv)	Connection symbol	No-load loss(W)	On-load loss(W)
30	6 6.3 10 10.5 11	±5 ±2*2.5	0.4	Yyn0	0.10	0.60/0.63
50				Yyn0 Dyn11 Yzn1	0.13	0.87/0.91
63					0.15	1.04/1.00
80					0.18	1.25/1.31
100					0.20	1.50/1.58
125					0.24	1.80/1.89
160					0.27	2.20/2.31
200					0.33	2.60/2.73
250					0.40	3.05/3.2
315					0.48	3.65/3.83
400					0.57	4.30/4.52
500					0.68	4.15/5.41
630				Yyn0 Dyn11	0.81	6.20
800					0.98	7.50
1000					1.16	10.30
1250					1.37	12.00
1600					1.65	14.50
2000					1.96	19.8

Rated voltage ratio(V)	Accuracy class and rated secondary output(VA)					Max.output	Rated insulation level(KV)
	0.2	0.5	0.2/0.5	0.5/0.5	6P
3000 100 100 √3 √3	60	120	/	/	100	1000	3.6/25/40
6000 100 100 √3 √3							7.2/32/60
10000 100 100 √3 √3	75	150				1500	12/42/75
6000 100 100 100 √3 √3 √3	/	/	50/80	90/90		1000	7.2/32/60
10000 100 100 100 √3 √3 √3			75/120	120/120		1500	12/42/75

2 mva transformer weight

Power	Max Voltage	Weight of Oil	Active Section Weight	Total Weight	Leng. A	Wid. B	Heig. C	D	F	ØG	L	M	N	S	T
kVA	kV	kg	kg	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
315 KVA	6,3-11	245	820	1295	1525	750	1740	1035	670	150	50	310	330	178	150
	15	270	840	1315	1540	760	1750	1040				385	330
	33	295	850	1330	1600	775	1805	1105				485	350
400 KVA	6,3-11	255	910	1360	1370	775	1595	1070	670	150	50	310	265	138	150
	15	290	960	1460	1495	775	1710	1115				385	265
	33	335	965	1525	1600	775	8155	1155				485	330
500 KVA	6,3-11	300	1100	160	1600	760	1700	1150	670	150	50	310	330	263	150
	15	315	1145	1690	1625	775	1765	1165				385	330
	33	380	1175	1800	1675	805	1920	1220				485	350
630 KVA	6,3-11	350	1280	1900	1680	790	1785	1185	670	150	50	310	330	263	150
	15	340	1285	1895	1640	785	1780	1185				385	330
	33	440	1405	2135	1700	810	1945	1255				485	350
800 KVA	6,3-11	480	1530	2335	1860	945	1835	1190	820	150	50	310	400	263	150
	15	475	1585	2385	1845	925	1870	1225				385
	33	560	1625	2515	1950	925	2000	1255				485
1000 KVA	6,3-11	540	1760	2690	1910	990	1900	1330	820	200	70	310	400	340	150
	15	565	1840	2780	1915	965	1975	1330				385
	33	650	1855	2900	1950	1015	2090	1360				485
1250 KVA	6,3-11	685	2070	3345	2050	1010	2025	1380	820	200	70	310	400	340	150
	15	670	2080	3345	2015	995	2090	1400				385
	33	760	2130	3495	2005	1005	2245	1455				485
1600 KVA	6,3-11	825	2415	4010	2100	1130	2110	1420	820	200	70	310	400	372	200
	15	855	2545	4155	2020	1125	2110	1420				385
	33	1000	2858	4405	2090	1185	2245	1455				485
2000 KVA	6,3-11	1025	2730	4785	2265	1250	2255	1525	1000	200	70	310	400	372	200
	15	1080	2765	4895	2270	1260	2160	1430				385
	33	1185	2745	4985	2270	1275	2465	1635				485
2500 KVA	6,3-11	1420	3645	6300	2395	1710	2365	1625	1000	200	70	310	400	450	330
	15	1445	3630	6300	2395	1710	2380	1640				385
	33	1485	3625	6345	2395	1410	2525	1690				485

cable size for 2 mva transformer

Cable size is fundamentally chosen by the current it is assumed to carry, and the voltage for which it is utilized. In expansion, frequently the voltage drop passable from one conclusion to the other moreover has to be inside limits. So on HV/ LV sides cables have to be chosen with these considerations. Only specify of 500 KVA transformer isn’t sufficient, though in most likelihood, you must be referring to 11 KV/ 440 V transformer.

Cable current carrying capacity:

Transformer full load current is calculated by:

Ifull-load = 12.5 × 106 / 1.73 × 20 × 103 = 361 A

2 mva transformer full load current

How to use the full load chart to find kVA

A) Determine the secondary voltage of your transformer.
B) Sum up the total amperes required by the load.
C) From the full load current table below, select a transformer under the corresponding secondary voltage, with a standard kVA capacity and amperage equal to or higher than the sum required by the load.

Full Load Current Table (1 Phase Transformer)

kVA	Current in Amperes
kVA	120V	240V	416V	480V	600V	2400V	4160V
0.25	2.08	1.04	0.6	0.52	0.41	–	–
0.5	4.16	2.08	1.2	1.04	0.83	–	–
0.75	6.25	3.13	1.8	1.56	1.25	–	–
1	8.33	4.17	2.4	2.08	1.67	–	–
1.5	12.5	6.25	3.6	3.13	2.5	–	–
2	16.7	8.33	4.81	4.17	3.33	–	–
3	25	12.5	7.21	6.25	5	1.25	0.72
5	41.6	20.8	12	10.4	8.33	2.08	1.2
7.5	62.5	31.2	18	15.6	12.5	3.12	1.8
10	83.3	41.6	24	20.8	16.6	4.16	2.4
15	125	62.5	36	31.2	25	6.25	3.6
25	208	104	60	52	41.6	10.4	6
37.5	312	156	90.1	78.1	62.5	15.6	9.01
50	416	208	120	104	83.3	20.8	12
75	625	312	180	156	125	31.2	18
100	833	416	240	208	166	41.6	24
150	1250	625	360	312	250	62.5	36
167	1391	695	401	347	278	69.5	40.1
250	2083	1041	600	520	416	104	60
333	2775	1387	800	693	555	138	80

Single Phase AC Motor Full Load Running Currents in Amperes and Recommended Transformer Ratings

Horsepower	Full Load Current (Amps)			Minimum Transformer KVA
Horsepower	110-120V	208V	220-240V*	Minimum Transformer KVA
0.5	9.8	5.4	4.9	1.5
0.75	13.8	7.6	6.9	2
1	16	8.8	8	3
1.5	20	11	10	3
2	24	13.2	12	5
3	34	18.7	17	5
5	56	30.8	28	7.5
7.5	80	44	40	15
10	100	55	50	15
15	135	74.8	68	25
20	–	–	88	25
25	–	–	110	37.5
30	–	–	136	37.5
40	–	–	176	50
50	–	–	216	75

kVA ratings include 10% overcapacity for frequent motor starts.

*For 200 volt motors, increase 220-240V ratings by 15%.

Full Load Current Table – 3 Phase Transformer?

kVA	Current in Amperes
kVA	208V	240V	380V	416V	480V	600V	2400V	4160V
2 KVA	5.55	4.81	3.03	2.77	2.4	1.92	0.48	0.27
3 KVA	8.32	7.21	4.55	4.16	3.6	2.88	0.72	0.41
6 KVA	16.6	14.4	9.11	8.32	7.21	5.77	1.44	0.83
9 KVA	24.9	21.6	13.6	12.4	10.8	8.66	2.16	1.24
15 KVA	41.6	36	22.7	20.8	18	14.4	3.6	2.08
30 KVA	83.2	72.1	45.5	41.6	36	28.8	7.21	4.16
45 KVA	124	108	68.3	62.4	54.1	43.3	10.8	6.24
75 KVA	208	180	113	104	90.2	72.1	18	10.4
112.5 KVA	312	270	170	156	135	108	27	15.6
150 KVA	416	360	227	208	180	144	36	20.8
225 KVA	624	541	341	312	270	216	54.1	31.2
300 KVA	832	721	455	416	360	288	72.1	41.6
450 KVA	1249	1082	683	624	541	433	108	62.4
500 KVA	1387	1202	759	693	601	481	120	69.3
600 KVA	1665	1443	911	832	721	577	144	83.2
750 KVA	2081	1804	1139	1040	902	721	180	104

Three Phase AC Motor Full Load Running Currents in Amperes and Recommended Transformer Ratings

Horsepower	Full Load Current (Amps) Minimum					Transformer kVA
Horsepower	110-120V	208V	220-240V*	440-480V	550-600V	Transformer kVA
0.5	4	2.2	2	1	0.8	3
0.75	5.6	3.1	2.8	1.4	1.1	3
1	7.2	4	3.6	1.8	1.4	3
1.5	10.4	5.7	5.2	2.6	2.1	3
2	13.6	7.5	6.8	3.4	2.7	6
3	19.2	10.7	9.6	4.8	3.9	6
5	30.4	16.7	15.2	7.6	6.1	9
7.5	44	24	22	11	9	15
10	56	31	28	14	11	15
15	84	46	42	21	17	30
20	108	59	54	27	22	30
25	136	75	68	34	27	45
30	160	88	80	40	32	45
40	208	114	104	52	41	75
50	260	143	130	65	52	75
60	–	170	154	77	62	75
75	–	211	192	96	77	112.5
100	–	273	248	124	99	150

kVA ratings include 10% overcapacity for frequent motor starts.

* For 200 volt motors, increase 220-240V ratings by 15%.

2 mva transformer for sale

2 mva dry type transformer
2 mva transformer
2 mva cast resin transformer
2 mva pad mounted transformer

2000 kva transformer
2000 kva pad mount transformer
2000 kva dry type transformer
2 mva 11kv transformer

Special Price Offer For 2 mva dry type transformer, get 2 mva transformer current rating, oil quantity and specification

Manufacturer Of 2 mva transformer, view 2 mva transformer price in india and 2 mva dry type transformer dimensions and weight

View All Product

2 MVA distribution transformer manufacturers

2 mva transformer manufacturers

2000 kva transformer

2 mva dry type transformer

Looking For 2 mva pad mounted transformer, 2000 kva dry type transformer Exporter in india, view 2000 kva transformer price.

what is 2 mva transformer ?

Why is a transformer rated in an MVA?

2 mva transformer specification

2000 kva transformer price

2 mva transformer manufacturers

Find Great Deals On 2 mva 11kv transformer, 2000 kva pad mount transformer, Check 2 mva transformer price

2 mva transformer oil quantity

2000 kva transformer amps

2 mva transformer current rating

Get All Type Test Report Here

types of industrial transformer available

2 mva transformer dimensions

2 mva transformer weight

cable size for 2 mva transformer

2 mva transformer full load current

Full Load Current Table (1 Phase Transformer)

Full Load Current Table – 3 Phase Transformer?

2 mva transformer for sale

Special Price Offer For 2 mva dry type transformer, get 2 mva transformer current rating, oil quantity and specification

Manufacturer Of 2 mva transformer, view 2 mva transformer price in india and 2 mva dry type transformer dimensions and weight

types of transformer available

Enquire Now

Quick Link

Contact Us
