Transformers such as the 5 mva transformer dimensions are considered to be one of the primary components for both the transmission as well as distribution of electrical energy. Click here for the cost of cost of 5 mva transformer in india.

5 mva transformer manufacturers in india

5 mva transformer manufacturers in india

5000 kva transformer

5000 kva transformer

5 mva 33/11kv transformer

5 mva 33/11kv transformer

Looking For 5 mva inverter duty transformer Exporter in india, view 5000 kva transformer price and 5 mva transformer current rating

The design of the 5 mva transformer oil capacity results mainly from the range of application, the construction, the rated power as well as the voltage level. The scope of 5 mva transformer parts types starts with generator transformers and ends with distribution type 5 mva transformer. A 5 mva power transformer which are directly connected to the generator of the power station can be referred to as a generator  5 mva 33/11kv transformer.

The power range of a 5 mva transformer current rating goes up to far above 1000 MVA. And the 5 mva transformer current capacity voltage range extends to approx. 1500 kV. Click here for the 5000 kva transformer price. Distribution 5000 kva transformer usually is produced within the range from 50 to 2500 kVA and max. 36 kV. In the last step, the 5 mva transformer full load current distributes the electrical energy to the consumers.

This is done by feeding the 5 mva inverter duty transformer from the high voltage network into a low voltage distribution network. The 5 mva transformer load capacity has been designed either as liquid- filled or as dry type transformers. Transformers with a rated power of up to 2.5 MVA including a voltage up to 36 kV can be referred to as distribution 5 mva transformer weight; on the other hand all transformers of higher ratings will be classified as power transformers.

We are one of the leading 5 mva transformer manufacturers in India. Because we offer competitive pricing all over the world, especially 5 mva power transformer price in India our client base consists of buyers in all sectors. These buyers often purchase or order different 5 mva transformer specification. Click on the link to obtain the technical specification of 5 mva transformer. We are also certified to perform 5 mva transformer testing.

what is 5 mva power transformer

MVA stands for Mega Volt Amp or Volts X Amp /1000,000. In case your add up to load necessity is 1000 volts and 5000 amps (1000 x 5000 = 5000,000 VA) it can be communicated as 5MVA. Usually called “apparent power” since it takes into thought both the resistive load and the reactive load. We generally indicate load by MVA, KVA or VA as any specific appliance of power framework generally absorbs active power as well as reactive power. ( Eg: transformers).

Partition the number of kVA by 1,000 to convert to MVA. For illustration, in case you have got 438 kVA, isolate 438 by 1,000 to induce 0.438 MVA.Multiply the number of kVA by 0.001 to change over to MVA.

5 MVA = 5000 KVA

technical specification of 5 mva transformer

Rating5 MVA, 3PH, 415/6.6/11KV
Frequency50 HZ
LT Nominal Voltage415V, AC
LT Breaker8000A, 3P, 415V MDO(4000AX2)
HT Nominal Voltage6.6/11KV, AC
CT Ratio100/5A
PT Ratio11/110V
Capacity of Oil250 LTR
Type of OilTC OIL
Vector GroupY-Y
Empty Weight
Full Weight
ProvisionsCan For Step Up and Step Down Application for Step Down Application Load Should be Balanced on 3PH
5 mva transformer manufacturers in india export toNigeria, Rwanda, Kenya, Bangladesh, Nepal, Africa, Tanzania, India, Malaysia Uganda, Malawi
Other Ratings10, 16, 25, 50, 63, 100, 160, 200, 315, 500, 630, 750 kVA
all above transformer are11kV , 22kV, 33kV line
Efficiency3, 4, 5 Star or Level II, Level III

5000 kva transformer price

 For Final 5 mva transformer price in india Please Mail Us on info@rajasthanpower.in

5 mva transformer manufacturers in india

Find Great Deals On 5 mva transformer, Check 5 mva transformer testing, weight and full load current

5 mva transformer current rating

kVA stands for Kilovolt-Ampere and is the rating regularly utilized to rate a transformer. The size of a transformer is decided by the kVA of the load. In numerous circumstances the power required by the load is proportionate to the rating of the transformer communicated in either VA or kVA. For case a 1KW (1000 Watts) load would require a 1kVA transformer @ unity power factor.

KVA calculation
For three phase KVA= (V*I*1.732)/1000
For single phase KVA= (V*I)/1000

MVA calculation-
For three phase MVA= (V*I*1.732)/100,000
For single phase MVA= (V*I)/1000,000

Get All Type Test Report Here

5 MVA Lightning Impulse Test Report5 MVA Short circuit Test Report5 MVA Temperature Rise Test Report
3.15 MVA Lightning Impulse Test Report3.15 MVA Short Circuit Test Report3.15 MVA Temperature Rise Test Report
2000 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Test Report1000 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Test Report500 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Coating Thickness Test Report
500 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Lightning Impulse Test Report500 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Paint Adhesion Test Report500 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Short Circuit Test Report
500 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Temperature Rise Test Report315 KVA, EEL-3, 11_0.433 kV, Copper Wound Distribution Transformer Lightning Impulse Test Report315 KVA, EEL-3, 11_0.433 kV, Copper Wound Distribution Transformer Temperature Rise Test Report
315 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Coating Thickness Test Report315 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Lightning Impulse Test Report315 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Short Circuit Test Report
315 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Sound Power Test Report315 KVA, EEL-2, 11_0.433 kV, Copper Wound Distribution Transformer Temperature Rise Test Report160 KVA, Lightning Impulse Test Report
160 KVA, Short Circuit Test Report160 KVA, Temperature Rise Test Report100 KVA, CRGO, EEL-3, 11_0.433 kV, Aluminium Wound Distribution Transformer Lightning Impulse Test Report
100 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Lightning Impulse Test Report100 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Short Circuit Test Report100 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Temperature Rise Test Report
100 KVA, Amorphous Core , EEL-3, 11_0.433 kV, Copper Wound Distribution Transformer Lightning Impulse Test Report100 KVA, Amorphous Core , EEL-3, 11_0.433 kV, Copper Wound Distribution Transformer Short Circuit Test Report100 KVA, Amorphous Core , EEL-3, 11_0.433 kV, Copper Wound Distribution Transformer Temperature Rise Test Report
100 KVA, CRGO, EEL-3, 11_0.433 kV, Aluminium Wound Distribution Transformer Short Circuit Test Report100 KVA, CRGO, EEL-3, 11_0.433 kV, Aluminium Wound Distribution Transformer Sound Power Test Report100 KVA Aluminium Wound Distribution Transformer Temperature Rise Test Report
63 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Lightning Impulse Test Report63 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Short Circuit Test Report63 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Temperature Rise Test Report
25 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Lightning Impulse Test Report25 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Short Circuit Test Report25 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Temperature Rise Test Report
16 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Lightning Impulse Test Report16 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Short Circuit Test Report16 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Sound Power Test Report
16 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Temperature Rise Test Report10 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Lightning Impulse Test Report10 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Short Circuit Test Report
10 KVA, CRGO Core , EEL-2, 11_0.433 kV, Aluminum Wound Distribution Transformer Temperature Rise Test ReportSingle Phase 25 KVA ALuminium wound Distribution Transformer EEL-2Single Phase 16 KVA ALuminium wound Distribution Transformer EEL-2
Single Phase 10 KVA ALuminium wound Distribution Transformer EEL-2Single Phase 5 KVA Aluminium wound Distribution Transformer EEL-2Single Phase 5 KVA Copper wound Distribution Transformer EEL-2

types of industrial transformer available

5 mva transformer dimensions

Main Technical Parameters for 35KV level ,S11 series distribution transformer
Rated
Power
(kva)		High
Voltage
(kv)		H.V.Tap
range		Low
Voltage
(kv)		Connection
symbol		No-load loss(W)On-load loss(W)
2000 kva   35   ±3*2.5

   6.3

10.5

     Ynd11     2.31     19.24
2500 kva     2.72     20.65
3150 kva

   35

38.5

     3.24     24.71
4000 kva      3.88     29.12
5000 kva      4.64     34.2
6300 kva      5.64     36.8
8000 kva

    6.3

6.6

10.5

11

    Ynd11      7.88     40.62
10000 kva      9.28     48.05
12500 kva      10.95     57.81
16000 kva      13.16     70.32
20000 kva     15.57      82.8
25000 kva      18.07

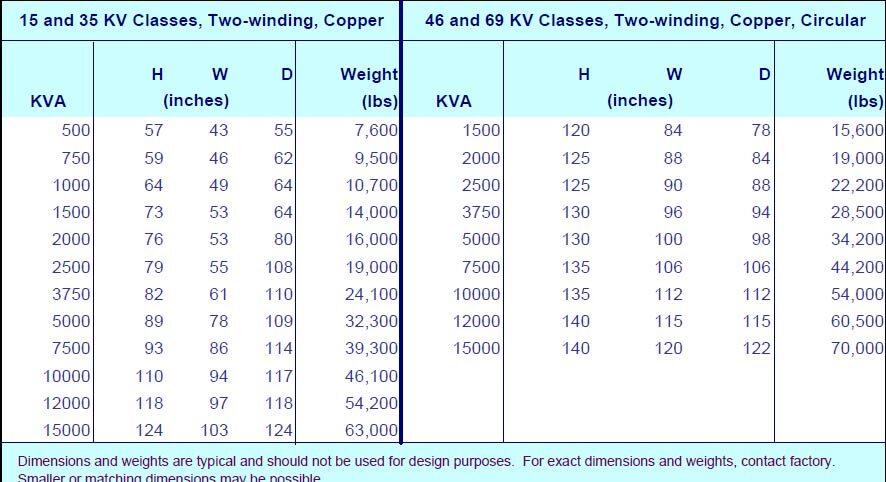

5 mva transformer weight

5-mva-transformer-weight

5 mva transformer testing

Below are the tests conducted by Rajasthan Powergen Transformer P. Ltd. before delivery. Other tests required by clients can also be done accordingly.

  •  Insulation resistance
  •  Resistance of all windings
  •  Check voltage ratio and vector group
  • No-load test at rated frequency and rated voltage
  • Impedance test
  • Withstand voltage testing
  • Induced over-voltage withstand testing
  • Partial discharge measurement
  • Oil leakage test

5 MVA transformer impedance

The impedance of a transformer is the entire restriction offered to substituting current. This may be calculated for each winding.However, a rather basic test gives a practical strategy of measuring the comparable impedance of a transformer without isolating the impedance of the windings.

Calculation of Percentage Impedance

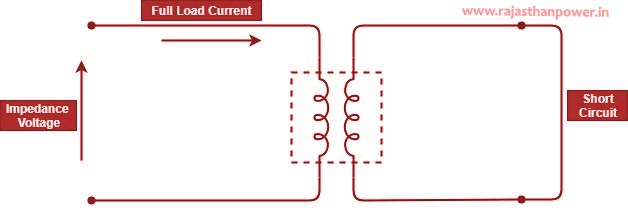

In arrange to decide proportionate impedance, one winding of the transformer is short-circuited. And a fair sufficient voltage is connected to the other winding to make full load current to stream within the short-circuited winding.This voltage is known as the impedance voltage.

calculation-of-percentage-impedance

Impedance Data for Single-Phase Transformers

kVASuggested X/R Ratio
for		Normal Range of Percent
Impedance (%Z)*		Impedance Multipliers** For Line-to-Neutral
Faults
1ØCalculation for %Xfor %R

25.0 kva

1.11.2–6.00.60.75

37.5 kva

1.41.2–6.50.60.75

50.0 kva

1.61.2–6.40.60.75

75.0 kva

1.81.2–6.60.60.75
100.0 kva2.01.3–5.70.60.75

Impedance Voltage

5 MVA

–

7.15%

5 mva transformer oil capacity

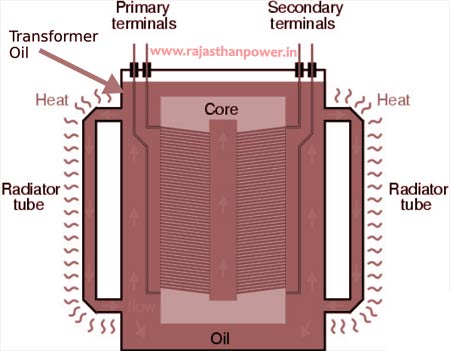

Transformer oil (moreover known as insulating oil) may be a uncommon type of oil which has fabulous electrical protection properties and is steady at high temperatures. Transformer oil is utilized in oil-filled electrical power transformers to insulate, stop arcing and corona release, and to disseminate the heat of the transformer (i.e. act as a coolant).

The oil capacity of 5MVA(5000kVA) transformer is 3030 ltr.

transformer-oil

5 mva transformer load capacity

Sl. No.Capacity and voltage ratting of Power-Transformer
1315 MVA 400/220 KV Single ph auto transformer
2200 MVA 220/132/33 KV Auto Transformer
3160 MVA 220/132/33 KV Auto Transformer
450 MVA 132/33 KV Power-Transformer
531.5 MVA 132/33 KV Power-Transformer
620 MVA 132/33 KV Power-Transformer
77.5 MVA 66/33 KV Power-Transformer
85 MVA 66/33 KV Power-Transformer
95 MVA 33/11 KV Power-Transformer
106.3 MVA 33/11 KV Power-Transformer
1110 MVA 33/11 KV Power-Transformer

5 mva transformer full load current

How to use the full load chart to find kVA

A) Determine the secondary voltage of your transformer.
B) Sum up the total amperes required by the load.
C) From the full load current table below, select a transformer under the corresponding secondary voltage, with a standard kVA capacity and amperage equal to or higher than the sum required by the load.

Full Load Current Table (1 Phase Transformer)
kVACurrent in Amperes
120V240V416V480V600V2400V4160V
0.25 kva2.081.040.60.520.41––
0.5 kva4.162.081.21.040.83––
0.75 kva6.253.131.81.561.25––
1 kva8.334.172.42.081.67––
1.5 kva12.56.253.63.132.5––
2 kva16.78.334.814.173.33––
3 kva2512.57.216.2551.250.72
5 kva41.620.81210.48.332.081.2
7.5 kva62.531.21815.612.53.121.8
10 kva83.341.62420.816.64.162.4
15 kva12562.53631.2256.253.6
25 kva208104605241.610.46
37.5 kva31215690.178.162.515.69.01
50 kva41620812010483.320.812
75 kva62531218015612531.218
100 kva83341624020816641.624
150 kva125062536031225062.536
167 kva139169540134727869.540.1
250 kva2083104160052041610460
333 kva2775138780069355513880

Single Phase AC Motor Full Load Running Currents in Amperes and Recommended Transformer Ratings

HorsepowerFull Load Current (Amps)Minimum Transformer KVA
110-120V208V220-240V*
0.59.85.44.91.5 kva
0.7513.87.66.92 kva
1168.883 kva
1.52011103 kva
22413.2125 kva
33418.7175 kva
55630.8287.5 kva
7.580444015 kva
10100555015 kva
1513574.86825 kva
20––8825 kva
25––11037.5 kva
30––13637.5 kva
40––17650 kva
50––21675 kva

kVA ratings include 10% overcapacity for frequent motor starts.

*For 200 volt motors, increase 220-240V ratings by 15%.

Full Load Current Table – 3 Phase Transformer?

kVACurrent in Amperes
208V240V380V416V480V600V2400V4160V
2 KVA5.554.813.032.772.41.920.480.27
3 KVA8.327.214.554.163.62.880.720.41
6 KVA16.614.49.118.327.215.771.440.83
9 KVA24.921.613.612.410.88.662.161.24
15 KVA41.63622.720.81814.43.62.08
30 KVA83.272.145.541.63628.87.214.16
45 KVA12410868.362.454.143.310.86.24
75 KVA20818011310490.272.11810.4
112.5 KVA3122701701561351082715.6
150 KVA4163602272081801443620.8
225 KVA62454134131227021654.131.2
300 KVA83272145541636028872.141.6
450 KVA1249108268362454143310862.4
500 KVA1387120275969360148112069.3
600 KVA1665144391183272157714483.2
750 KVA2081180411391040902721180104

Three Phase AC Motor Full Load Running Currents in Amperes and Recommended Transformer Ratings

HorsepowerFull Load Current (Amps) MinimumTransformer kVA
110-120V208V220-240V*440-480V550-600V
0.542.2210.83 KVA
0.755.63.12.81.41.13 KVA
17.243.61.81.43 KVA
1.510.45.75.22.62.13 KVA
213.67.56.83.42.76 KVA
319.210.79.64.83.96 KVA
530.416.715.27.66.19 KVA
7.544242211915 KVA
10563128141115 KVA
15844642211730 KVA
201085954272230 KVA
251367568342745 KVA
301608880403245 KVA
40208114104524175 KVA
50260143130655275 KVA
60–170154776275 KVA
75–2111929677112.5 KVA
100–27324812499150 KVA

kVA ratings include 10% overcapacity for frequent motor starts.

* For 200 volt motors, increase 220-240V ratings by 15%.

5 mva transformer parts

distribution-transformer-parts

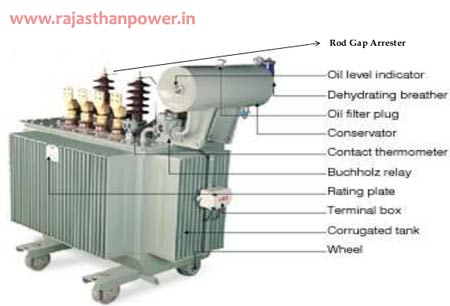

These are the basic components of a 5 mva transformer.

  1. Insulating materials
  2. Windings
  3. Laminated core
  4. Tap changer
  5. Transformer oil
  6. Cooling tubes
  7. Explosion vent
  8. Breather
  9. Oil Conservator
  10. Buchholz Relay

5 mva transformer for sale

  • 5 mva power transformer
  • 5 mva transformer
  • 5000 kva transformer
  • 5 mva transformer
  • 5 mva 33/11kv transformer
  • 5 mva inverter duty transformer
Special Price Offer For 5 mva 33/11kv transformer, see 5 mva transformer oil capacity and cost of 5 mva transformer in india
Manufacturer Of 5 mva power transformer, view 5 mva transformer current capacity, current rating and dimensions
